HVAC Temperature Protection Considerations for Long-Term Care Facilities
Nursing homes and long-term care facilities rely on dependable heating, ventilation, and air-conditioning (HVAC) systems to support comfortable indoor conditions for residents, staff, and visitors. Facility managers, engineers, and HVAC contractors must consider how building systems respond to abnormal operating conditions—especially in spaces where residents may need assistance during an emergency.
Firestat duct high limit switches are temperature-activated electrical controls designed to respond when air temperature inside ductwork reaches a specified limit. When correctly selected and integrated into an HVAC control circuit, a Firestat can interrupt that circuit to help shut down connected equipment during an excessive-temperature condition.
For a broader overview of where these controls may be used, explore Firestat’s duct high limit control applications.
Application suitability should always be confirmed against the facility’s system design, equipment instructions, and applicable code requirements.
Potential Applications in Nursing Homes
Depending on the design and requirements of the facility, duct high limit controls may be considered for applications such as:
- Central HVAC systems serving resident rooms, corridors, and common areas.
- Ductwork connected to heating equipment.
- Electric duct heater installations.
- HVAC systems distributing conditioned air to multiple areas of a facility.
The control’s location and function should be determined by the project engineer or qualified HVAC professional. For more examples across commercial and institutional environments, see Firestat’s applications page.
How a Firestat Duct High Limit Control Works

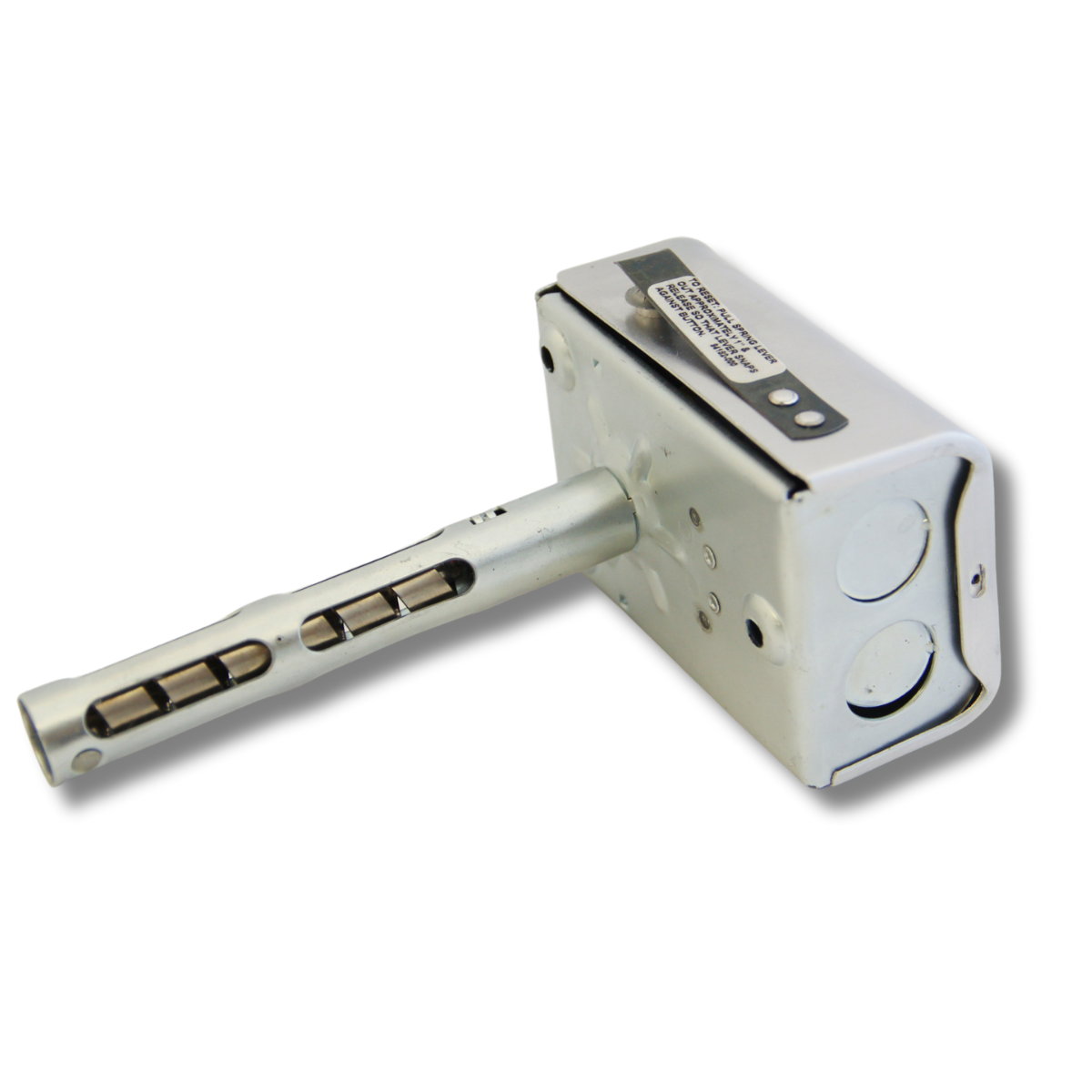

Firestat controls are externally mounted to HVAC ductwork. A stainless steel sensing probe extends into the duct where it continuously monitors air temperature.
When the preset temperature is reached:
- The helix bi-metal sensing element rapidly expands.
- A snap-action switch changes state.
- Power is interrupted to fans, blowers, dampers, or other connected HVAC equipment.
- The control remains tripped until manually reset after the condition has been evaluated.
Because manual intervention is required before restarting the HVAC system, the cause of the over-temperature event can be investigated before airflow resumes.
Supporting Building Code Compliance
Many state and local mechanical codes require temperature-responsive HVAC shutdown or similar fire protection measures in shared duct systems. Requirements vary by jurisdiction and application, so HVAC designers and contractors should always verify local code requirements with the authority having jurisdiction (AHJ).
Firestat Duct High Limit Controls are designed to support installations that comply with numerous regional mechanical code requirements and listings, including applications recognized under North Carolina, Louisiana, California, and New York requirements.
Installation and Product Selection Checklist
- Confirm the intended safety function and required temperature limit.
- Check duct dimensions and select a sensing-element length suitable for the installation location.
- Verify electrical ratings, contact configuration, and control-circuit compatibility.
- Confirm the required reset function and mounting arrangement.
- Follow the product-specific wiring diagram and installation instructions, and verify operation as required.
Before specifying or replacing a control, review the Firestat duct high limit switch installation guide.
For additional help with temperature settings, probe length, ratings, and model selection, consult the Firestat FAQ page.
Choosing the Right Firestat Control
The right model depends on the required trip temperature, duct dimensions, sensing-element length, electrical ratings, contact configuration, reset requirements, and installation conditions. Firestat offers both adjustable and fixed-temperature options.
Neither type is automatically the best choice for every nursing home. Confirm the required set point using the HVAC equipment specifications and applicable requirements; do not select a temperature solely from a general rule of thumb.
Adjustable Duct Limit Controls
Fixed Duct Limit Controls
Adjustable models can be set within a 100°F–250°F range, allowing the temperature setting to be selected for the application. Review the adjustable duct limit controls page for product details and available configurations.
Fixed-temperature models are intended for applications where the required trip point is established by the equipment design or project specifications. Review fixed duct limit controls to compare available options.
Learn more Learn moreProduct Features
Firestat Duct High Limit Controls include:
- Manual reset operation
- Fixed or adjustable temperature settings
- Temperature range from 100°F–250°F
- 5″, 7.5″, and 11″ sensing probe lengths
- Helix bi-metal sensing technology
- Snap-action switching
- External duct mounting
- UL Recognized
- Made in the USA
- OEM customization and private labeling available
Buying Firestat Controls for a Facility Project
If you are sourcing a replacement control or planning a new HVAC installation, purchasing options may depend on the quantity, delivery needs, and whether the project requires a standard or custom configuration. Visit the Firestat distributor page to explore distributor purchasing options.
For a larger project, a replacement with uncertain specifications, or an application that needs technical review, contact Firestat for help selecting the right duct high limit control. When reaching out, include the HVAC equipment type, required trip temperature, existing part number if available, duct dimensions, and electrical requirements.
Support Your Facility’s HVAC Temperature-Protection Strategy
A properly selected duct high limit switch can provide a temperature-responsive control within an HVAC system. For nursing homes and other long-term care facilities, product selection should be coordinated with the mechanical design, equipment manufacturer’s requirements, and applicable healthcare, mechanical, electrical, and building codes.
Explore Firestat’s product options: Adjustable Duct Limit Controls | Fixed Duct Limit Controls
Always verify the specific model’s product listing, ratings, installation instructions, and applicable code requirements. Product selection and installation should be reviewed by qualified professionals.
Talk to a Product Specialist
Whether you need a replacement duct high limit switch, assistance selecting the proper sensing element length, or a custom OEM solution, our team is ready to help.
Contact Firestat today to discuss your application or request a quote.
